RATTMMOTOR STL-63 110V Pneumatic Punch Press Machine Small Desktop Punching Press Hand Machine 0.5-0.8Mpa Operation Pressure 200KG

Product description

Product features:

Compressed air as a power source, high efficiency and easy to operate, can reduce the labour force, can be applied to manual operation, automated assembly line integration operation;Simple structure, easy to operate, inexpensive, superior performance, no hydraulic system and electric standby noise, can save power consumption to reduce production costs, has a very high cost-effective;The output force is easy to adjust, only need to adjust the pneumatic pressure can be adjusted to the required pressure, high yield. Equipped with anti-rotation guide bar, guide plate, high precision, can adapt to high-speed precision punching;According to different products or moulds, it can adjust the height, speed, stroke, pressure and stamping time; Optional two-hand control buttons or foot switches can be used, protection devices, heating moulds, temperature control and pressure sensors can be added, and the manipulation device and pre-control device meet the safety standards to ensure the personal safety of the operators.Adopting microcomputer control system, manual, semi-automatic and full-automatic operation can be selected, and another control device can be added.Adopting high-density alloy material, high strength, long life, no deformation, adjustable cylinder stroke.

Model 63 Parameters

Working table area: 135*150mmClosed height: 200mmMould shank hole: diameter 16mmWeight: 16KGCylinder specification: 63×75-50Inlet pipe specification: 8*5MMControl Methods: Pneumatic/electronic controlTheoretical pressure: 200KG / 440.92 Ib

Cylinders

Cylinder diameter determines pressure

Adjustable handwheel & High frequency solenoid valve

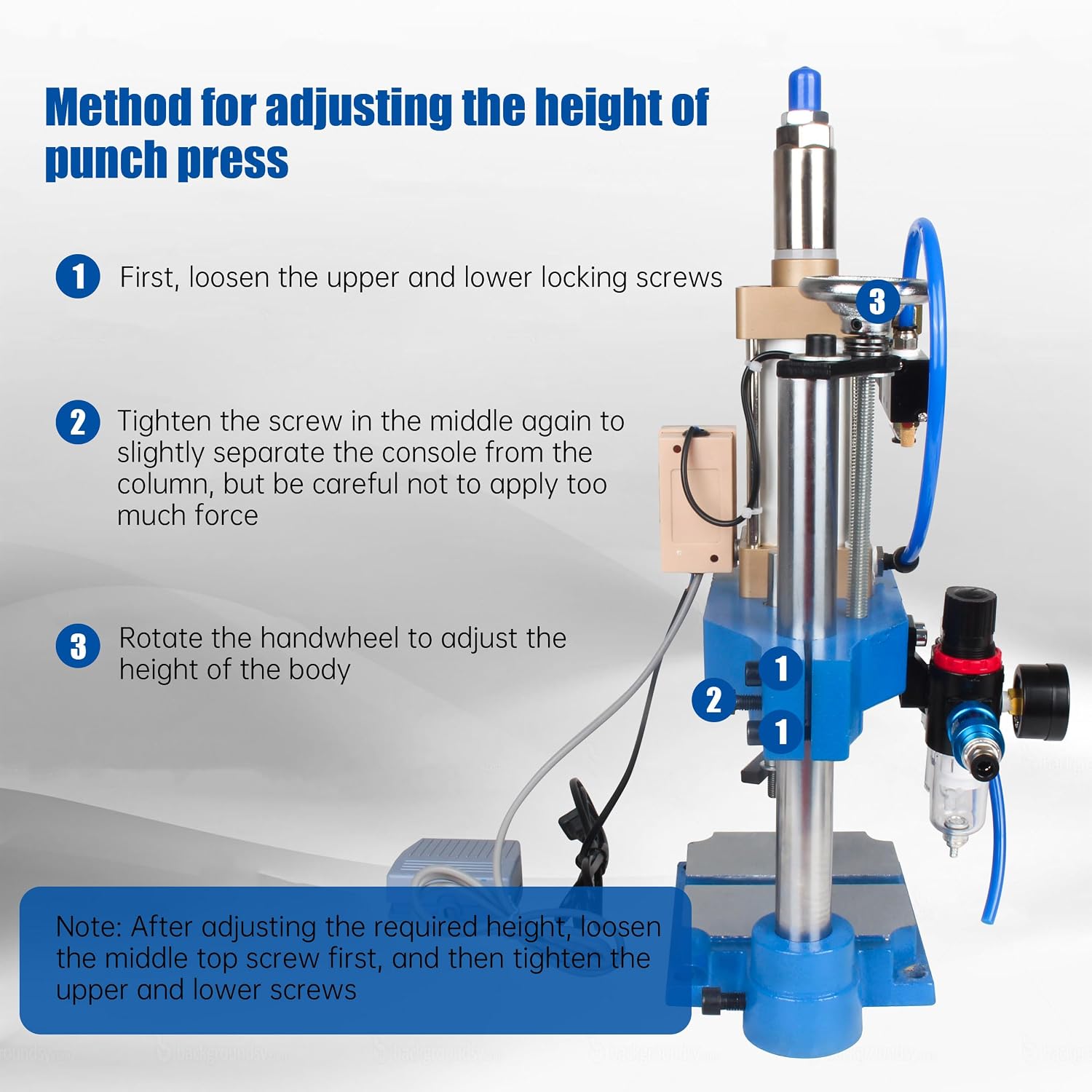

Adjustable handwheel, easy height adjustmentHigh frequency solenoid valve, can work 10 million times

Air Processor

High-efficiency filtration, precise pressure regulation, stable performance

Applications

Model: STL 63×75-50Cylinder diameter: 63mmCylinder stroke: 75mmAdjustable range of cylinder stroke: 50mmIf the maximum cylinder stroke is 75mm, reduce 50mm, the minimum stroke is 25mm, shorten the stroke can reduce the air consumptionAir pump: with more than 70L air pumpUse of industry: suitable for small accessories, plastic parts, plaster moulding, copper rivets, pressing and so on

✅【Model Description:】Model: STL63; Cylinder Diameter: 63mm; Cylinder Stroke: 75mm; Cylinder Stroke Adjustable Range: 50mm: If the maximum cylinder stroke is 75mm, reduce by 50mm, the minimum stroke is 25mm. shortening the stroke can reduce the consumption of air supply.
✅【Model 63 Parameters】Worktable area: 135*150mm; Closed height: 200mm; Mould shank hole: diameter 16mm; Weight: 16KG; Cylinder specification: 63×75-50; Inlet pipe specification: 8*5MM; Theoretical pressure: gas control/electric control.
✅【Use industry】Can be equipped with more than 70L air pump, suitable for small accessories, plastic parts, plaster moulding, copper rivets, press-fit and so on.
✅【Foot switch with high sensitivity】Adopting humanised foot pedal arc design, the foot pedal is more anti-slip. Foot switch to start the work, the foot pedal presses the cylinder down, release the cylinder back, suitable for small processing.
✅【Product features】Compressed air as power source, high efficiency and easy to operate, can reduce labour, can be applied to manual operation, automated assembly line integration operation; according to different products or moulds, adjust the height, speed, stroke, pressure size and stamping time.
